| Product name | Metal Filter Mesh Tubes |
| Material | 304/316 stainless steel ,copper,bress |
| Mesh Size | 2 Mesh – 3500Mesh (standard) |
| Wire Diameter | 0.03mm – 3.0mm (customizable) |
| Free simple | Sample is available |
| Packaging | Jumbo bag and pallet |
| Payment method | T/T,LC, Western Union, PayPal, Escrow and Money Gram |

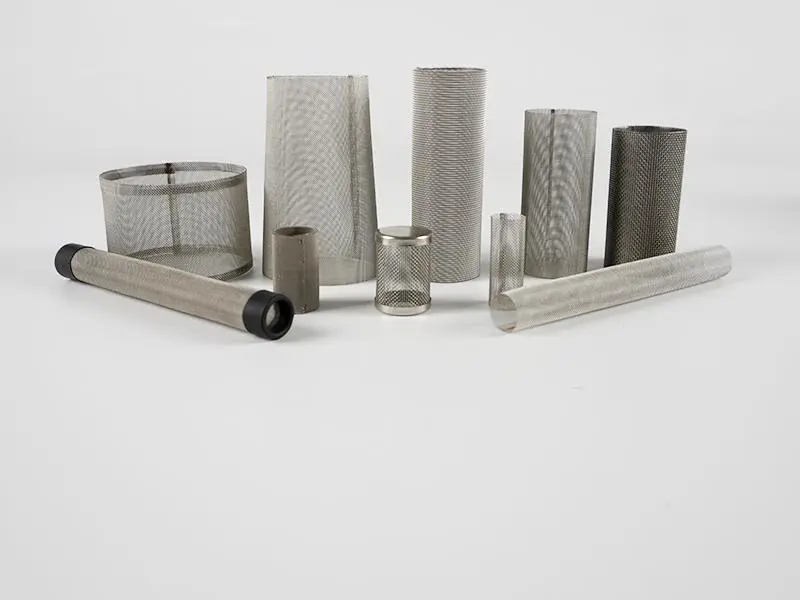

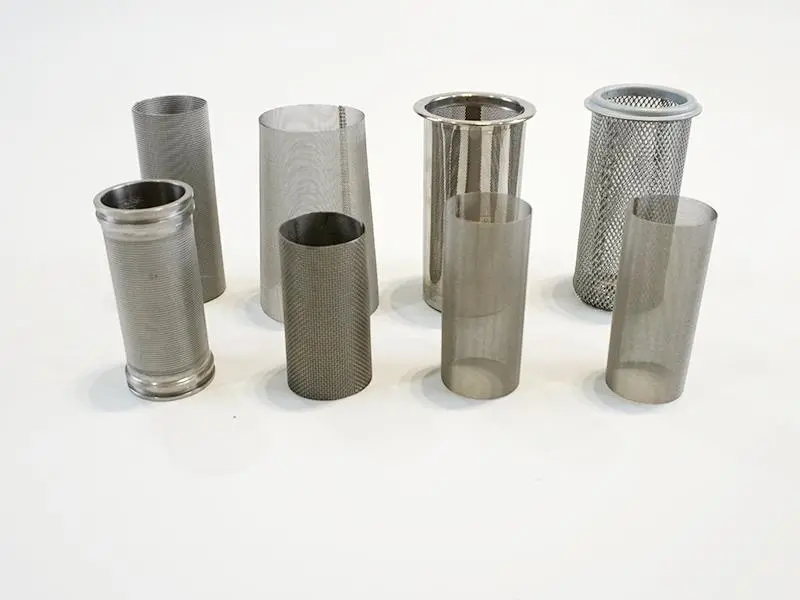

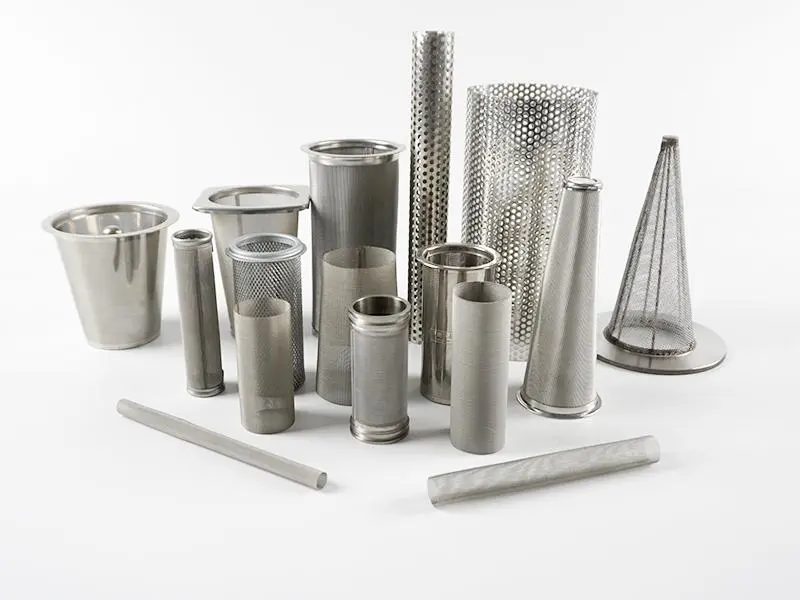

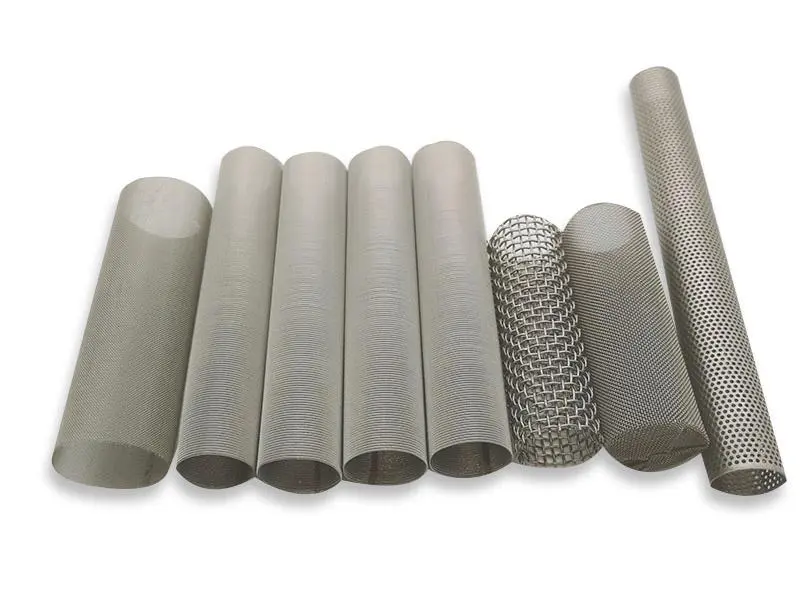

Metal filter mesh tubes are high-performance cylindrical filtration components engineered by our company to deliver reliable particle separation and fluid purification across diverse industrial applications. Constructed from premium metal meshes—welded, sintered, or woven into a robust tubular structure—these filters combine exceptional durability, precise filtration accuracy, and resistance to extreme conditions. Available in various sizes, materials, and configurations, metal filter mesh tubes are designed to handle high temperatures, pressures, and corrosive environments, making them indispensable for maintaining process integrity in critical operations.
Material Options
- Stainless Steel (304, 316, 316L): The most versatile choice, offering excellent corrosion resistance, temperature tolerance (up to 800°C for 316), and mechanical strength. 316L is ideal for chemical processing, marine applications, and systems handling aggressive fluids.
- Hastelloy and Monel: Premium alloys for extreme corrosive environments, including exposure to strong acids, alkalis, and industrial solvents. These materials provide superior resistance to pitting, crevice corrosion, and stress corrosion cracking.
- Nickel and Titanium: Suitable for high-purity applications, aerospace, and medical industries, where biocompatibility, high-temperature stability, or resistance to reactive gases is required.
- FeCrAl Alloys: Designed for high-temperature filtration (up to 1200°C), perfect for furnace exhaust systems, incinerators, and thermal processing equipment.
Structural Characteristics
- Precision Mesh Construction: Tubes are fabricated using advanced techniques such as plain weave, twill weave, or sintered mesh to achieve uniform pore sizes (ranging from 1μm to 5mm), ensuring consistent filtration efficiency. Sintered mesh options offer enhanced mechanical strength and multi-layered filtration for complex separation needs.
- Reinforced End Caps: Most tubes feature welded or flanged end caps (made from the same material as the mesh) to provide structural rigidity, secure mounting, and leak-proof connections to filtration systems.

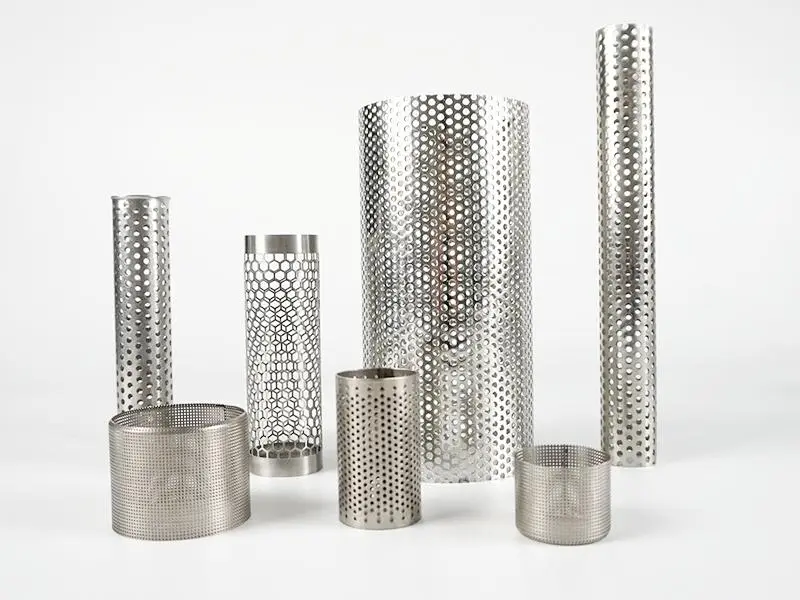

- Perforated Support Layers: For high-pressure applications, an inner perforated metal tube or outer cage is integrated to reinforce the mesh, preventing deformation under extreme pressure (up to 1000 bar).
- Customizable Dimensions: Available in lengths from 50mm to 6000mm and diameters from 10mm to 300mm, with options for seamless or seam-welded construction based on application demands.
Applications
1. Liquid Filtration
- Pharmaceutical: Bioreactor vent filters, CIP systems
- Food & Beverage: Beer, wine, edible oil processing
- Chemicals: Acid filtration, catalyst recovery
2. Gas/Solid Separation
- Compressed Air: Oil/water separators
- HVAC Systems: Particulate air filters
- Pneumatic Conveying: Powder processing
3. Specialty Applications
- Hydraulic Systems: High-pressure oil filters
- Marine: Fuel/water separators
- Oil & Gas: Sand control filters
