| Product name | 304/316 Stainless Steel Wire Mesh |
| Material | SUS 304 (Ni≥8, Cr≥18 ) SUS 316 (Ni≥10, Cr≥16 ) |
| Mesh Size | 1 Mesh – 635 Mesh (Plain weave, twill weave), 12*64-500*3500 Mesh（Dutch weave） |
| Mesh Opening | 0.001mm – 6.0mm |
| Free sample | Sample is available |
| Packaging | Moisture-proof paper + bubble wrap + wooden box |
| Payment method | T/T, LC, Western Union, PayPal, Escrow and Money Gram |
Stainless steel woven mesh is a high-quality metal woven product of our company, which is made of selected stainless steel wires through advanced mechanical weaving technology. With its excellent comprehensive performance, stainless steel has become an ideal material for woven mesh, endowing the product with a series of excellent characteristics and playing a key role in many industries. In addition, we can also offer stainless steel wire mesh processing services.
Weave Type
The weaving types of stainless steel wire mesh mainly include three types: Plain weave, Twill weave and Dutch weave.
Plain weave and twill weave are the most common weaving type. They are economical, durable, and have uniform mesh. These two methods are usually used. The difference lies in that twill weave can produce metal meshes with smaller holes and larger wire diameters.
Dutch weave is quite unique. It is thicker in thickness, thus having greater strength, and it can produce metal meshes with higher filtration accuracy. The smallest can be as small as 1 micrometer. However, the cost is also relatively high.
Available Processing Services
Product Feature
- Strong Corrosion Resistance: 304/316 stainless steel is rich in alloying elements such as chromium (Cr) and nickel (Ni), which can form a dense and strong oxide film on the surface of the woven mesh. This oxide film, like a strong shield, effectively blocks the erosion of various corrosive media such as acids, alkalis, salts, and water vapor. Even in harsh chemical environments, the woven mesh can remain stable for a long time without being corroded and damaged, which greatly prolongs the service life of the product. It is very suitable for use in environments with strong corrosiveness such as chemical industry and marine fields.
- Flexible specifications: We are well aware of the diverse needs of different customers in different application scenarios. Therefore, the mesh shape, aperture size and wire diameter of stainless steel woven mesh can be accurately adjusted according to the actual requirements of customers. The aperture size ranges from micron-level ultra-fine apertures to centimeter-level larger apertures; the wire diameter can also be flexibly selected. The complete range of specifications enables this product to perfectly adapt to various complex and special application scenarios.
- High Permeability and Filtration Precision: Through precise weaving technology, the meshes of stainless steel woven mesh are uniform. The uniform meshes ensure stable and precise filtration performance. In the screening and filtration process, it can efficiently separate particles and impurities of different sizes. In industries such as food and medicine that have extremely high requirements for particle classification accuracy, the woven mesh can accurately screen out products that meet the standards, ensuring product quality and safety. At the same time, the uniform meshes also ensure good permeability, allowing fluids to pass through smoothly and reducing pressure loss.

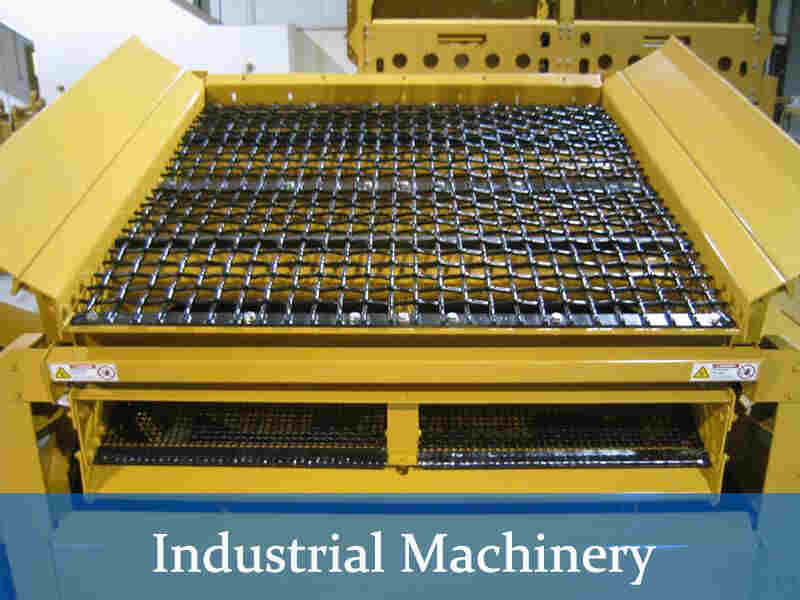

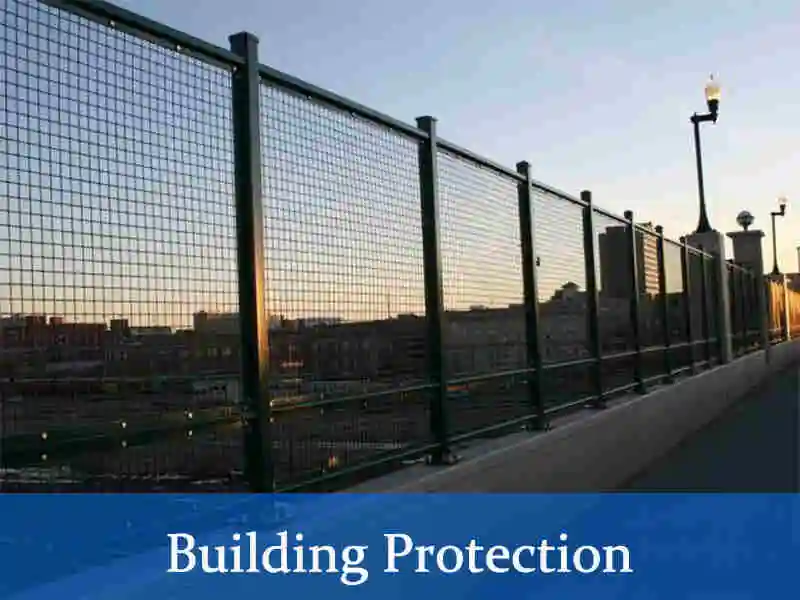

Applications
